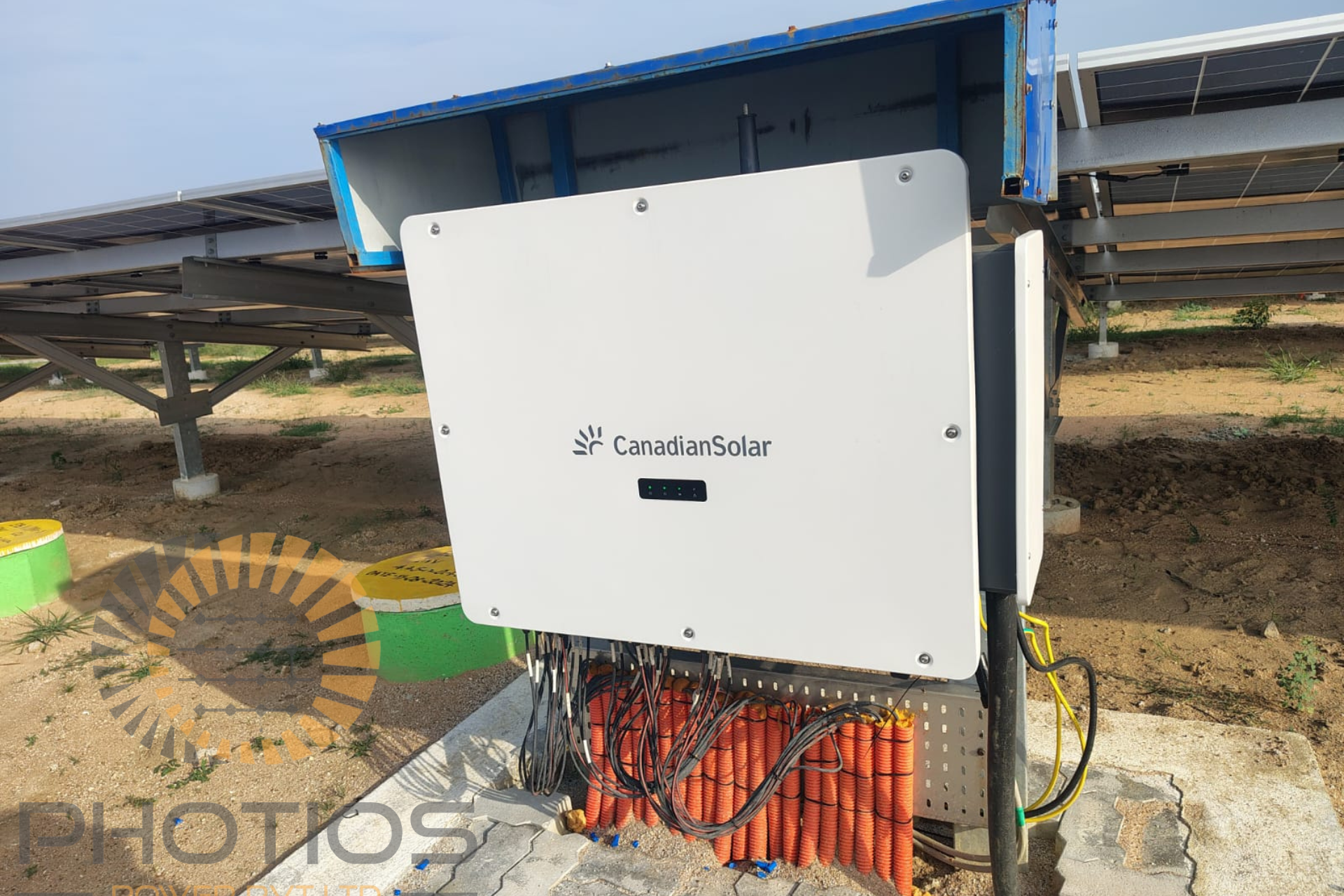

The Canadian 350kW inverter is a three-phase string inverter designed for commercial and industrial ground mount projects
What We Offer
*High Efficiency*:
Maximum efficiency of up to 99.01% ensures optimal energy production.
*Advanced MPPT Technology*:
12 or 16 MPPTs (Maximum Power Point Trackers) enable efficient energy harvesting.
*Wide Input Voltage Range*:
Supports 500-1500V DC input, making it compatible with high-power solar panels.
*Protection Features*:
Includes anti-islanding protection, DC insulation resistance detection, and AC output overcurrent protection for safe operation.
*IP66 Protection*:
Designed to withstand harsh environmental conditions. Some specifications of the Canadian CSI 350KW three-phase string inverter include ¹
*Maximum DC Input Voltage*:
1500V
*Rated Input Voltage*:
1190V
*Maximum AC Output Power*:
352 kVA @ 35 ℃ –
*Grid Connection Type*:
3-phase/PE This inverter is suitable for medium-scale ground-mounted solar applications and supports bifacial modules, smart I-V curve scanning, and optional PID recovery ².

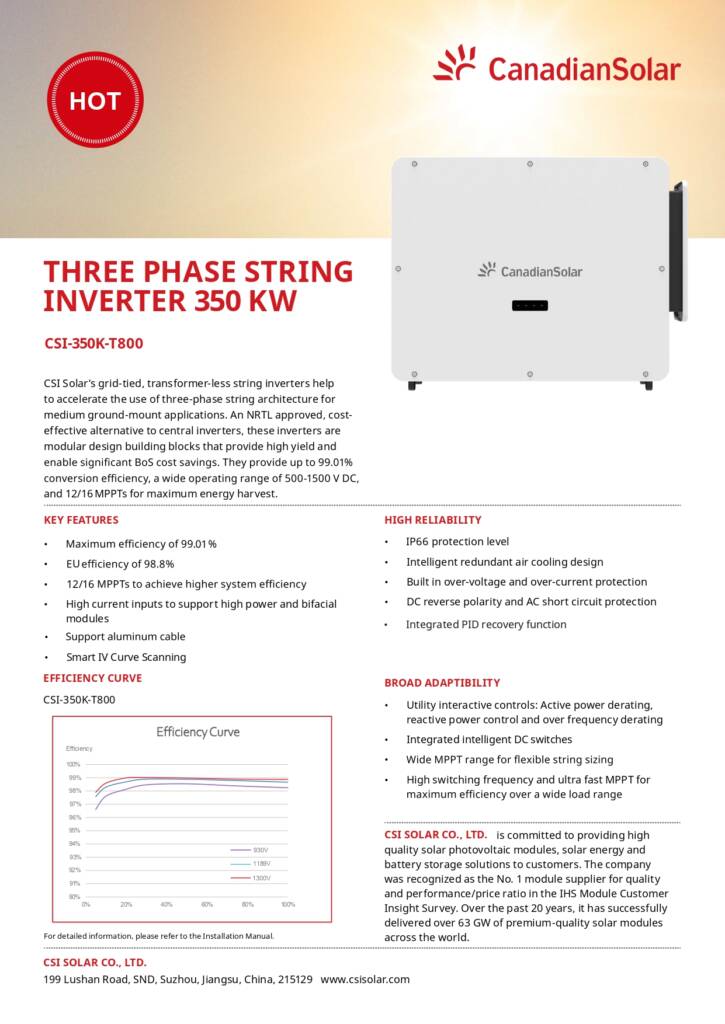

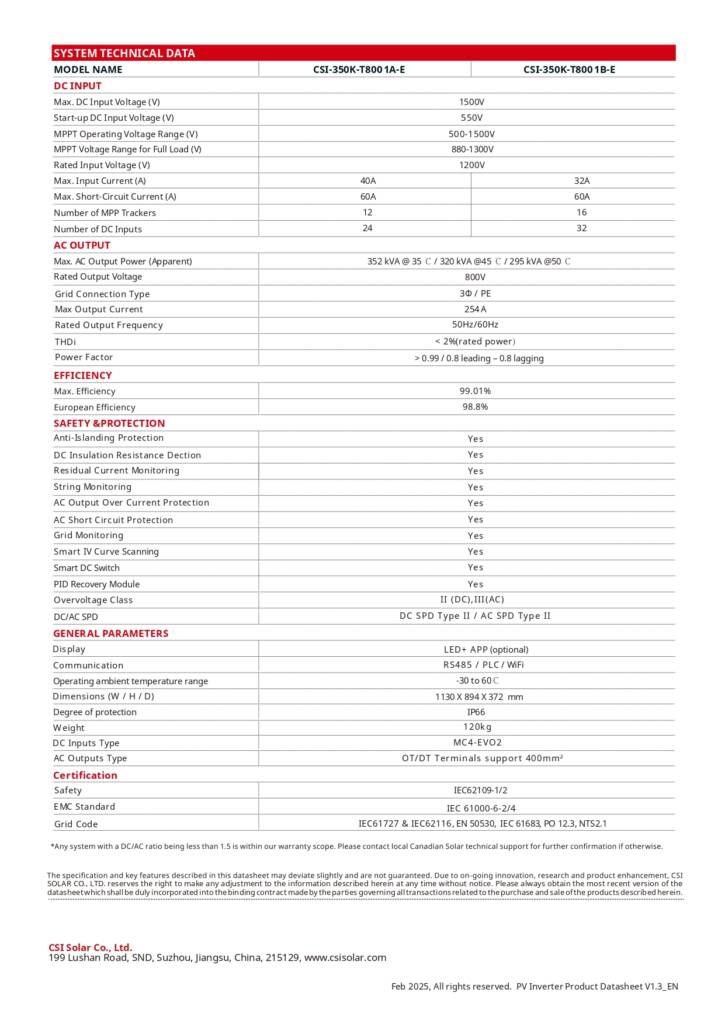

Product Datasheet
